Toyota Wish Unreg/Recond - buying guide

The first generation of Toyota Wish (ZNE10G) is very popular to Malaysian market for the last few years. Even when the second generation already been launched, there are still plenty of "old" Wishes running around with new registration plate.

There are many different specifications of this car available, as usual for JDM cars. Plenty of options are available too. It is very hard to find a consolidated information as details of this cars are scattered around the sites, forums and directory with various languages. Hence, the purpose of this entry is as a one-stop centre for potential Wish buyer who want to know the detail of their potential ride. I will cover the details of specification, engine option and equipment level for each variants.


More details after the jump.

Overview of Toyota Wish ( 1st generation)

Generally, the car is 4550mm long with 1695mm width and 1590mm of height. The wheelbase is 2750mm and importantly, the interior length is 2670mm. The car has 5 proper seats ( or 4 in 2.0Z) plus 2 third row seat.

There are two engine available, a 1.8 L 1ZZ-FE engine, producing 132 PS and 170 Nm of power and torque. This model is only available with four-speed automatic. A 2.0 L version is equipped with the 1AZ-FSE direct-injection engine, with 155 PS and 192 Nm of power and torque respectively. This variant comes only with a CVT gearbox. However, there is another version for Thailand market ( which also exported to Malaysia) that comes with 2.0 1AZ-FE engine as the ASEAN Camry instead of the 1AZ-FSE. This is port injected engine instead of direct injection. The ASEAN version also gets a conventional 4 speed auto transmission instead of CVT as well as double wishbones rear suspension from 4WD JDM Wish.

For the drivetrain, the 1.8 version is available with front wheel drive (FWD) and four wheel drive (4WD). 2.0 version is available only with the former. Speccing the 4WD will also give you a double wishbone rear suspension instead of torsion beam setup for FWD version ( expect that 2.0Z comes only with FWD + double wishbone rear suspension).

Toyota Wish was first introduced in January 2003 in Japan market. The car was facelifted at the end of 2005, with a host of cosmetic modifications include headlights, bumpers, LED tail-lights revised switchgear for the climate control and automatic transmission with the 2.0Z received a preset 7 ratios for its CVT.
The variants and their drivetrain package is summarized below.
Pre-facelift (2003-2005)

Grade
Model Code
CC
Transmission
2.0 G
UA-ANE10G-HPXGH
1998
CVT
1.8 X 4WD
UA-ZNE14G-HPPNK
1794
4AT
1.8 X
UA-ZNE10G-HPPNK
1794
4AT
1.8 X E
UA-ZNE10G-HPPNK
1794
4AT
1.8 X S 4WD
UA-ZNE14G-HPPNK
1794
4AT
1.8 X S
UA-ZNE10G-HPPNK
1794
4AT
2.0 Z 2.0
UA-ANE11W-HWXQH
1998
CVT


Facelift model (2005- 2009)

Grade
Model Code
CC
Transmission
2.0 G
DBA-ANE10G- HPXGH
1998
CVT
X 4WD AT 1.8
CBA-ZNE14G- HPPNK
1764
4AT
X AERO SPORTS PACKAGE 4WD AT 1.8
CBA-ZNE14G- HPPNKS
1764
4AT
X AERO SPORTS PACKAGE AT 1.8
DBA-ZNE10G- HPPNKS
1764
4AT
X AT 1.8
DBA-ZNE10G- HPPNK
1764
4AT
X E PACKAGE AT 1.8
DBA-ZNE10G- HPPNKE
1764
4AT
Z CVT 2.0
DBA-ANE11W- HWXQH
1998
CVT
Please note that 2.0 variant comes with CVT gearbox. Make sure you can accept this kind of gearbox before deciding. If you still prefer a 2.0l engine and yet insist on conventional torque converter 4 speed auto transmission, your choice is only limited to used UMW's Toyota Wish.


Variants available


Malaysian seller usually only describe the car as "low spec" and "high spec". But there are more than just two variants of Wish. The specification is also sometimes mixed, as buyers in Japan have access to vast choice of cost options.
As described in the table above, there are many specs of Toyota Wish. Apart from having a differentiated drivetrain combo, the trim level is also different. This will be explain by pictorial description below.


1.8X (pre-facelift)
Wheel cap, no flog lamp for X model

Standard type meter- without optitron

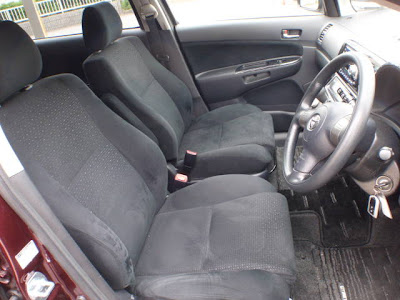

Light grey fabric, standard type of front headrest and material coloured door handles


1.8XE (pre-facelift)
XE is the cheapest variant of Toyota Wish one can buy. With this spec, you get no arm rest, no seat back pocket, 2 speaker set up, no under seat tray, no luggage lamp, no steering switch option and pretty much as spartan as you can get!


Wheel cap, no foglamp for base version


Black door handles, standard type meter

Note the lack of front seat arm rest and seat pocket


1.8 XS (pre-facelift)
XS spec gets all around skirting, alloy wheels and fog lamp


Darker centre console trim, with sport type meter
The sport-type meter, without optitron

Sport type front headrest, seat back pocket, chrome door handles, darker fabric shades
2.0G (pre-facelift)
This variant is very similar to 1.8X spec model.Among the minor different is the higher grade meter and seat back pocket for both driver and passenger side. The CVT box does not comes with sequential shift though.
No alloy and flog lamp, as per X model

This was said to be higher grade meter, I don't see much different to 1.8 X model

Chrome door handles, two seat back pocket
2.0 Z (pre-facelift)
This is the highest spec of all Wish that comes with all bells and whistles. Compared to "G" model, this version comes in 6 seater configuration, with two captain chairs for second row. The CVT box comes with 6 preset sequential option.


Bodykit, 17inch alloy, wheel arch extension, 2.0Z got the looks




Individual chair for 2nd row
Optitron meter is featured in 2.0Z only
Facelift model ( end 2005 onwards).
At the end of 2005, Toyota Wish get a host of update which are mostly cosmetic. They consist of new headlamp design, reprofiled front and rear bumpers, LED tail light and 2.0Z version gets a sequential 7 speed CVT, one up from previous model. Equipment and specification level are more or less similar with the pre-facelift one.


1.8 XE (facelifted)





1.8 X (facelifted)



1.8 X AEROSPORT







2.0G








2.0 Z









Summary of chassis and drivetrain


Dimensions/Others
Grade
Z
G
X
2WD
2WD
2WD
4WD
Dimensions(LxWxH)(mm)
4550 x 1745 x 1600
4550 x 1695 x 1590
4550 x 1695 x 1600
Wheelbase (mm)
2750
Tread front/rear (mm)
1500/1490
1480/1460
1480/1465
1480/1460 (S-package)
1480/1460
Ground Clearance (mm)
170
155
Interior(LxWxH) (mm)
2670 x 1460 x 1310
Seating Capacity
6
7
Curb Weight  (kg)
1400
1360
1300
1400
Min. Turning Radius (m)
5.4
5.3
5.3
5.5


Engine
Engine type
1AZ-FSE (D-4)
1ZZ-FE
Cylinders/valves
IL-4 DOHC
Bore and Stroke (mm)
86.0 x 86.0
79.0 x 91.5
Piston displacement (cc)
1998
1794
Compression ratio
10.5
10.0
Max power (NET) kW(PS)/rpm
114(155)/6000
97(132)/6000
92(125)/6000
Max torque (NET) N.m(kg.m)/rpm
192(19.6)/4000
170(17.3)/4200
161(16.4)/4200
Fuel system
D-4
EFI
Fuel type
Unleaded regular gasoline
Tank capacity (L)
60

Gear ratio
Transmission
Super CVT + 6speed sports sequentialshift matic/7spd for facelift
Super CVT
Super intelligent 4AT (Super ECT)
Gear ratio 1st
2.396
|
0.428
2.847 1st
2.847 1st
               2nd
1.552 2nd
1.552 2nd
               3rd
1.000 3rd
1.000 3rd
               4th
0.700 4th
0.700 4th
               reverse
2.456
2.343
Final gear ratio
5.182
4.237

Steering/Suspension/Braking system/Drive train
Steering
Rack & pinion
Suspension  (F)
Strut coil spring with stabilizer
Suspension  (R)
Double wishbone coil spring with stabilizer
Torsion beam coil spring with stabilizer
Torsion beam coil spring with stabilizer
Double wishbone coil spring with stabilizer
Braking system (F/R)
Ventilated discs / Discs (Z, G, X - 4WD)
Ventilated discs / Leading trailing drum (X -2WD)
Drive train
2WD OR  4WD



Summary of equipment level
As you can see below, there's plenty of option available. The best deal is to get the highest speced car within each trim level.


Standard equipment
Manufacture option
Bolt-on option
SEAT
Z
2WD
G
2WD
X S-package
2WD/4WD
X
2WD/4WD
X E-package
2WD
Front seat - Headrest
sports type
STD
sports type
STD
 STD
Front seat - Armrest
driver's + passenger's
driver's + passenger's
driver's + passenger's
driver's
 NA
Seat back pocket
driver's seat
driver's + passenger's
driver's seat
driver's + passenger's
 NA
Seat back table
passenger's
 NA
passenger's
 NA
NA
Seat under tray
passenger's
passenger's
passenger's
passenger's
 NA
Second row seat - Captain seat reclinable
6seater
 NA
NA
NA
NA
Second row seat - 6:4 divided seat reclinable
 NA
7seater
7seater
7seater
7seater
Second row seat - Headrest
 STD
 STD
STD
STD
STD
Second row seat - Armrest

2grade angle adjustable
2grade angle adjustable
2grade angle adjustable
2grade angle adjustable
Third row seat - Headrest
STD
STD
STD
STD
 STD
Third row seat - 5:5 divided seat reclinable
STD
 STD
STD
STD
STD
INTERIOR
Z
G
X S-package
X
X E-package
Deck hook
 STD
 STD
 STD
STD
NA
Inside door handle
chromed
chromed
chromed
chromed
black
Luggage room lamp
 STD
STD
STD
STD
NA
Deck board
 STD
STD
STD
STD
NA
Center console tray
STD
STD
STD
 STD
NA
AIR CONDITIONER
Z
G
X S-package
X
X E-package
Auto air conditioner
STD
STD
 STD
STD
STD
Clean air filter
STD
STD
STD
STD
STD
Rear heater duct - 2nd row
OPTION
OPTION
OPTION
OPTION
OPTION
Rear heater duct - 2nd row 3rd row
NA
NA
4WD
4WD
NA
EXTERIOR
Z
G
X S-package
X
X E-package
Over fender (front + rear)
 STD
NA
NA
NA
NA
Aero bumper (front + rear)
STD
 NA
 STD
NA
NA
Rear spoiler
sports type
STD
sports type
 STD
STD
Back door garnish
smoked
chromed
smoked
chromed
chromed
Electric tilt & slide moon roof
OPTION
OPTION
OPTION
OPTION
NA
Outside door handles
colored
colored
colored
colored
black
COCKPIT
Z
G
X S-package
X
X E-package
Combination meter
with optitoron, meter lightcontrol
high grade type
sports type
normal type
normal type
Gate type shift lever knob
leather
STD
leather
 STD
STD
6MT sports sequential shift matic
STD
 NA
NA
NA
NA
Steering switch
OPTION
OPTION
OPTION
OPTION
NA
3spokes steering wheel
leather
STD
leather
STD
STD
Central locking system
STD
STD
 STD
 STD
STD
Driver's footrest
STD
STD
STD
STD
STD
Inside panel cluster & power window switch base
carbon look
chrome look
carbon look
chrome look
chrome
Engine immobilizer
OPTION
OPTION
OPTION
OPTION
NA
DRIVING
Z
G
X S-package
X
X E-package
215/50R17 tire + 7JJ alloy wheel
 STD
NA
NA
NA
 NA
195/65R15 tire + 6JJ alloy wheel
NA
OPTION
STD
NA
NA
195/65R15 tire + 6JJ steel wheel + resin full cap
NA
STD
NA
STD
STD
Stabilizer (front + rear)
STD
STD
STD
STD
 STD
Rear disc brake
STD
STD
STD
4WD
NA
SAFETY
Z
G
X S-package
X
X E-package
VSC (vehicle stability control) + TRC (traction control)
STD
NA
 NA
 NA
 NA
ABS with EBD
 STD
 STD
 STD
 STD
 STD
Brake assist
STD
STD
STD
STD
STD
Dual SRS airbag
STD
STD
STD
STD
STD
SRS side air bag (front seat) & SRS curtain sealed airbag (front + second seat)
OPTION
OPTION
OPTION
OPTION
OPTION



Unregistered car price


Below is the indicative price from Mudah.my. Note that the price and varies greatly from dealer to dealer and state to state.


Price for model/year in RM:
